Hi there!

I am running ROS Melodic on an Raspberry PI 1 Type B to pimp my dusty Roomba 5xx. Writing the driver and using the Roomba Open Interface was the easy part. I also mounted a YDLiDAR X4 on the Roomba, which also works quite well in my stack. However, there are some problems where I need some hints about how to further debug what is going on while using slam_toolbox.

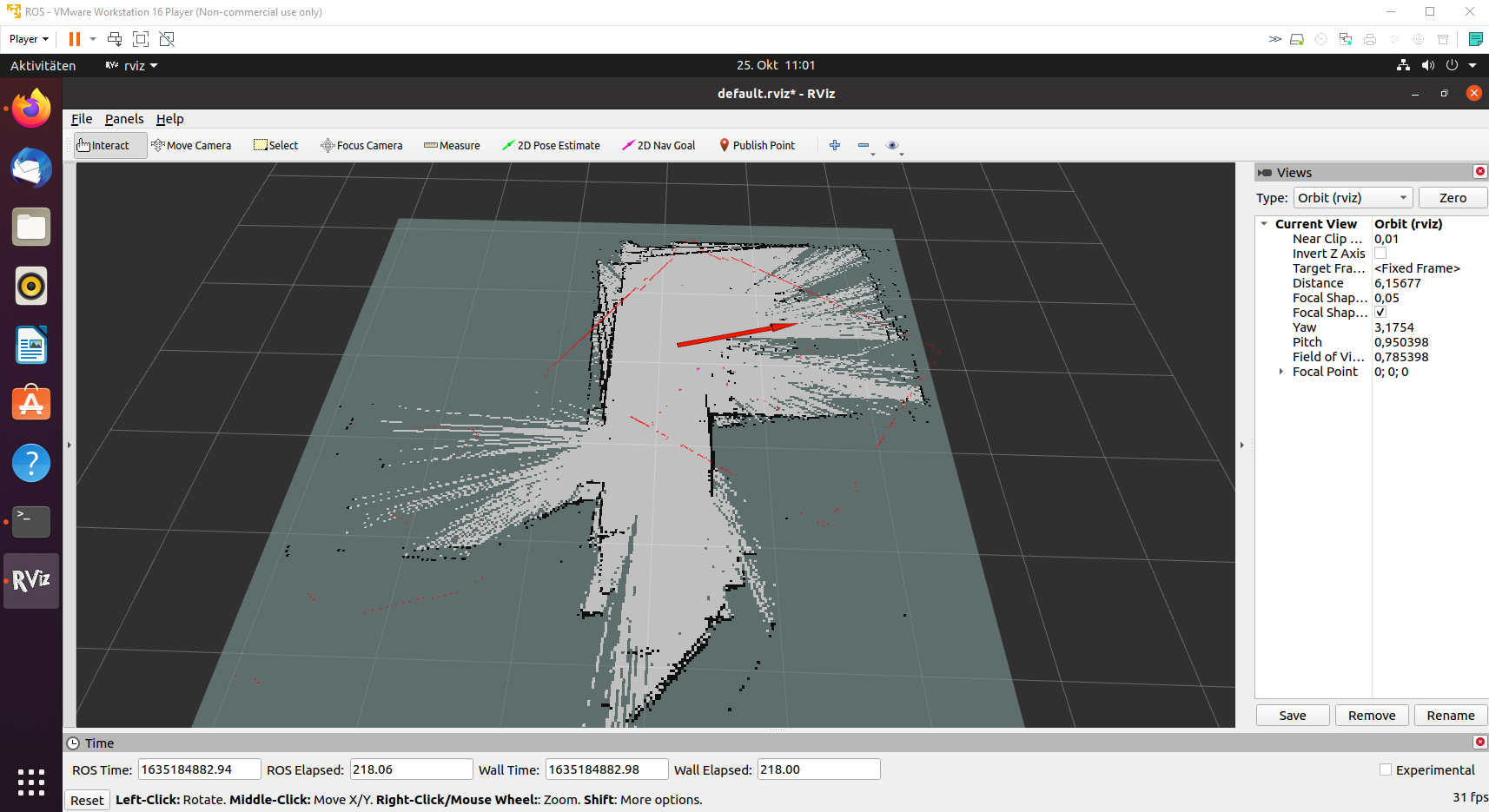

I took the slamtoolbox onlinesync configuration as a baseline, and did some tests to generate a map while driving the robot around. Visualization with RViz shows some strange effects. The laserscan does not align with the map, and it also takes some seconds to get a new odom->map transform, and sometimes the transform seems to be skewed. See the attached screenshot, the red arrow is the current position and odometry, red dots are the laserscan, and the map from slam_toolbox is the background.

I also observed a correlation between map updates and odom publication intervalls. Publishing odometry with 10 hertzs leeds to better results than publishing with 20 herzt, which is from my point of view counter-intuitive. In both cases I observed smaller or larger skews as seen in the RViz screenshot.

I really don't know whats going on here, so I am really thankful for all kinds of help. Things I have already checked:

• Odometry seems to be ok. It has a larger drift while rotating the robot on the spot, but as far as I have observed there are no huge jumps, it seems to be continous. I also use the Roomba wheel encoders to calculate position and rotation, as the build-in odometry seems to be inacurate.
• I tested the robot in different rooms. It definitely works better in edgy, feature-rich rooms without small obstacles, so sensor noise might be an issue here.
• The Raspbery Pi is outdated, but CPU and RAM are not maxed out. The first version of the driver was written in Python, which worked, but was very CPU intense. The current version is written in CPP, which works better, and I can run my driver, the ydlaser driver and the slam_toolbox note on the Pi without running into cpu or memory problems. I do not plan to generate maps for large environments, as this might be too much to this little SoC.
• There are no errors in the log file. However, if I increase the odom publish interval further, I am getting some transform timeout errors, and in extreme cases errors regarding the scan_buffer maxed out.
• There must be a bug in my driver or assumptions(likely) or configuration(maybe), but I really want to understand the situation causing this skew to know how and where to fix it.

Thank you all for your time, and please let me know if you have hints or suggestions to point me in the right direction.

Mirko
